Overview

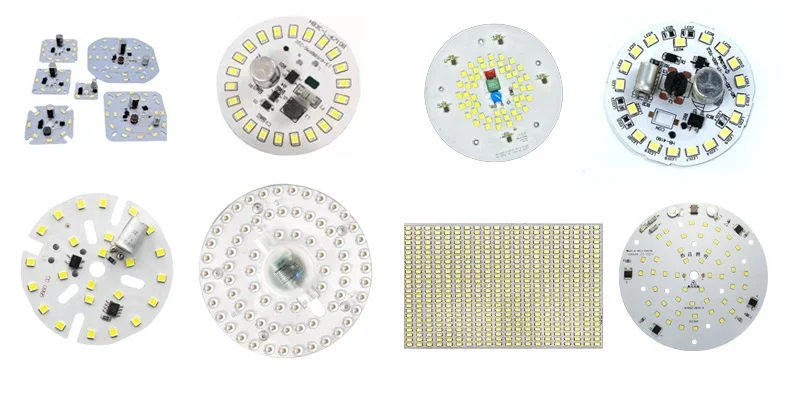

If you need a high-speed, high-precision, stable pick and place machine, please choose CHARMHIGH! If you need a pick and place machine with super cost-effectiveness, please choose CHARMHIGH! If you need aSMT production line that best suits your company , please choose CHARMHIGH!
Description of important advantages of the equipment
ANC: nozzles can be automatically allocated according to components, making SMT production more intelligent and more efficient.

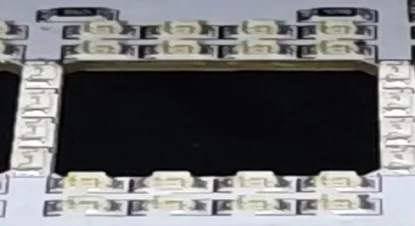

High-precision universal mounting head: one machine can meet the mounting needs of various components with high stability
Cast iron base structure, the pick and place machine runs smoothly at high speed.
Driven by dual servo motors, mounting accuracy is guaranteed.
For more advantages, please consult or leave a message online...

Pcb Making LED DOB Assembly Production Line CHM LS08 Visual Mounter 8 Head Speed SMT Pick and Place Machine manufacture
Pcb Making LED DOB Assembly Production Line CHM LS08 Visual Mounter 8 Head Speed SMT Pick and Place Machine manufacture

Company Profile
Pcb Making LED DOB Assembly Production Line CHM LS08 Visual Mounter 8 Head Speed SMT Pick and Place Machine factory

Charmhigh was established in 2009 and has a history of 16 years. We mainly focuses on the research and development, manufacturing and sales of SMT P&P machines and provide customers with one-stop SMT solutions.We currently has our own industrial park, which is mainly divided into: R&D center, manufacturing center, sales center, etc. The site size is nearly 40,000 square meters. The products are exported to various countries and are deeply trusted by users.
Why Choose Us

1.CHARMHIGH is chosen by customers in more than 30 countries around the world.
2. We have rich experience in SMT factory settings and are good at customizing various SMT manufacturing solutions and services for customers from scratch.
3. We can provide the most professional technical services and support.
4. We have rich experience in dealing with SMT issues and solutions.
5. Choosing CHARMHIGH will definitely become your reliable Chinese partner.
Pcb Making LED DOB Assembly Production Line CHM LS08 Visual Mounter 8 Head Speed SMT Pick and Place Machine supplier
Pcb Making LED DOB Assembly Production Line CHM LS08 Visual Mounter 8 Head Speed SMT Pick and Place Machine supplier

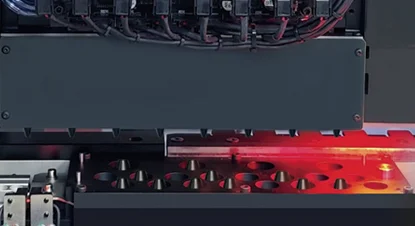

ANC
20-hole nozzle library, automatically changes nozzles according to the different components, making your SMT production more intelligent and automatic, and improving production efficiency.
Pcb Making LED DOB Assembly Production Line CHM LS08 Visual Mounter 8 Head Speed SMT Pick and Place Machine details
Pcb Making LED DOB Assembly Production Line CHM LS08 Visual Mounter 8 Head Speed SMT Pick and Place Machine factory

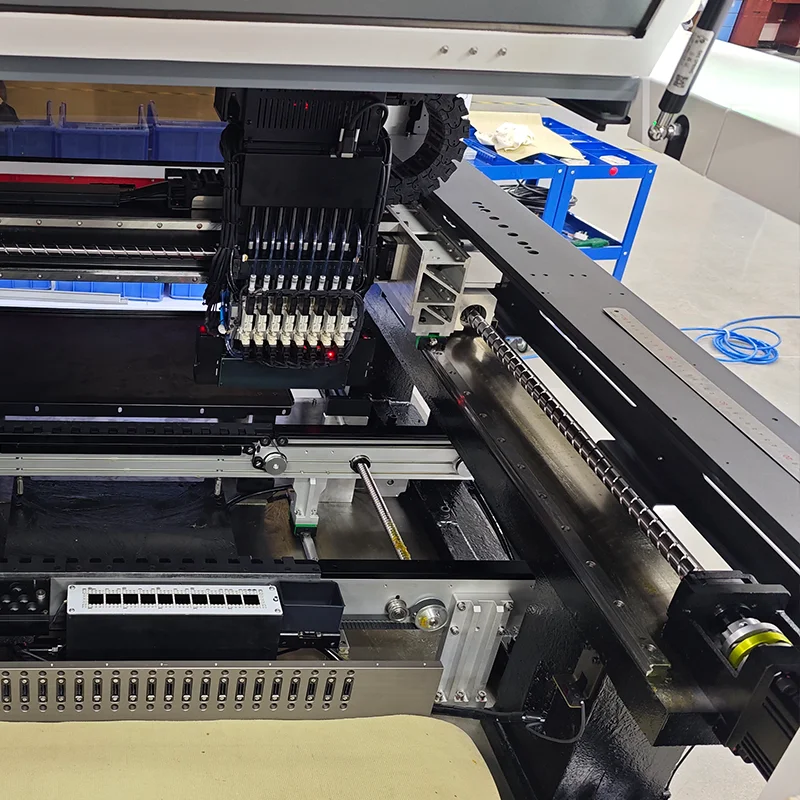

Y-axis servo dual motor drive
Ensure the accuracy and stability of the pick and place machine when working at high speed.Solve the problem of easy wear of angular swing torque generated by single motor drive.

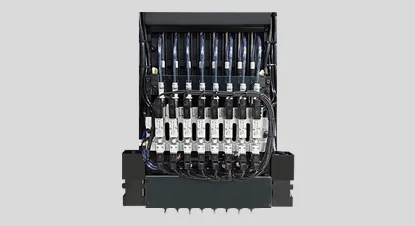

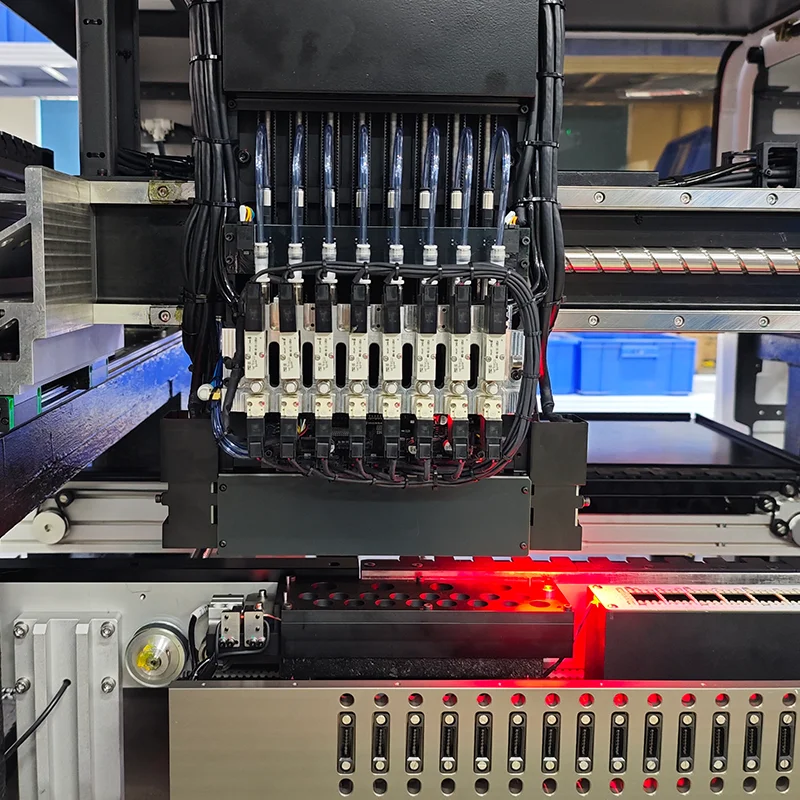

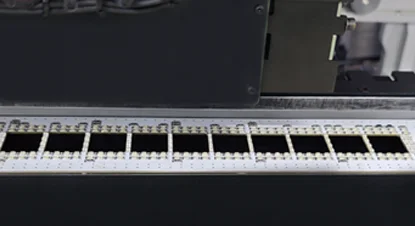

Universal multifunctional mounting head
Meets the needs of mounting various components and don't need to replace the mounting head. Component mounting range: 0201-16mm*16mm, and larger components mounting
Pcb Making LED DOB Assembly Production Line CHM LS08 Visual Mounter 8 Head Speed SMT Pick and Place Machine supplier
Pcb Making LED DOB Assembly Production Line CHM LS08 Visual Mounter 8 Head Speed SMT Pick and Place Machine details

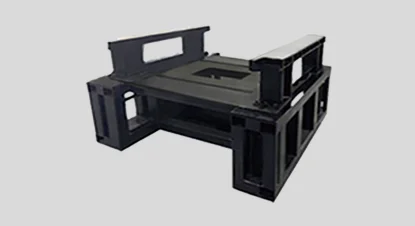

Frame structure
The grinding platform and the Y-axis gantry are integrally cast. Refuse to use low-cost marble structure, which has poor impact resistance and cannot be repaired if it is damaged one day.

High-definition IC camera vision system
Based on advanced visual algorithms, it can clearly identify the number and characteristics of chip pins to ensure high-precision chip mounting. It also has segmentation and
recognition functions to ensure the mounting of large components.
Pcb Making LED DOB Assembly Production Line CHM LS08 Visual Mounter 8 Head Speed SMT Pick and Place Machine supplier
Pcb Making LED DOB Assembly Production Line CHM LS08 Visual Mounter 8 Head Speed SMT Pick and Place Machine manufacture

High-speed flying camera
High-speed synchronous recognition of components within 16MM*16MM, achieving high-speed mounting.Each nozzle has independent detection function, making SMT production more reliable.

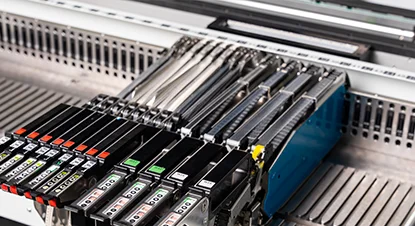

25 feeder position(8mm)
25 feeder positions on the front of the machine,Behind the machine is the IC placement areausing NXT feeder, feeding accuracy ±0.03 mm , fast feeding speed, high accuracy, effectively reducing material throwing.
Pcb Making LED DOB Assembly Production Line CHM LS08 Visual Mounter 8 Head Speed SMT Pick and Place Machine details
Pcb Making LED DOB Assembly Production Line CHM LS08 Visual Mounter 8 Head Speed SMT Pick and Place Machine details
Pcb Making LED DOB Assembly Production Line CHM LS08 Visual Mounter 8 Head Speed SMT Pick and Place Machine factory

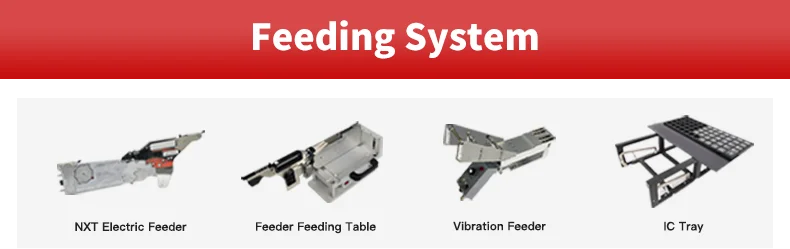

Feeding method: electric feeder is used for feeding, and the feeding accuracy reaches ±0.03mm Feeder feeding table: supports offline feeding in advance, saving working time. Vibration feeder: support the feeding of tubular components. IC tray: support TRAY feeding and bulk components feeding.

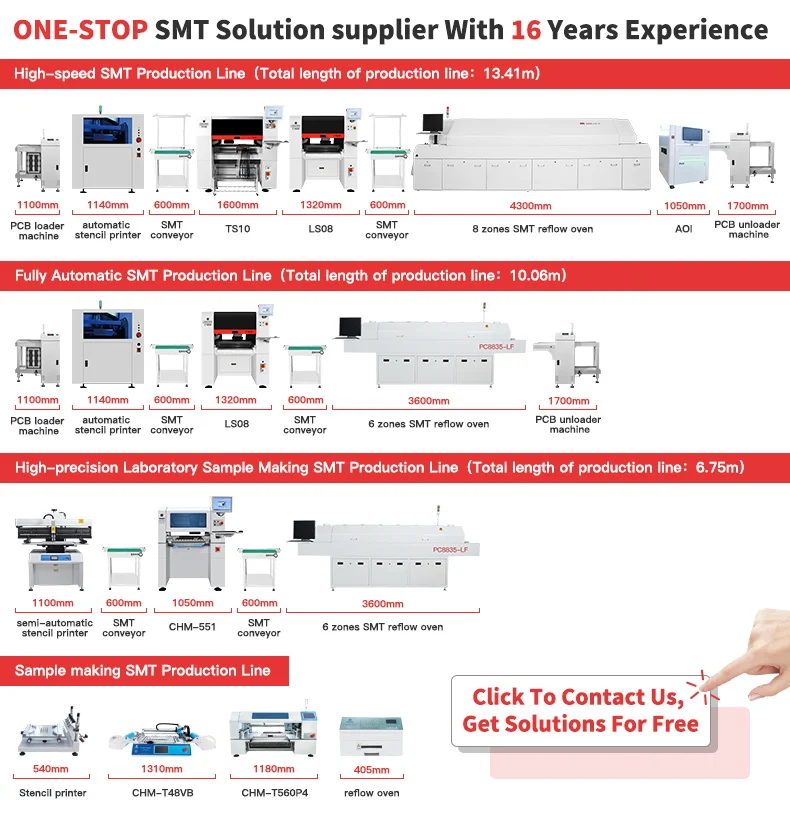

SMT Product Introduction
Hed4abac9e93f4b6881b8fd94c2ee59b5q[1].png H1427e7d3d2e4421fbaad9376ce6c978eG[1](82133f855d).png

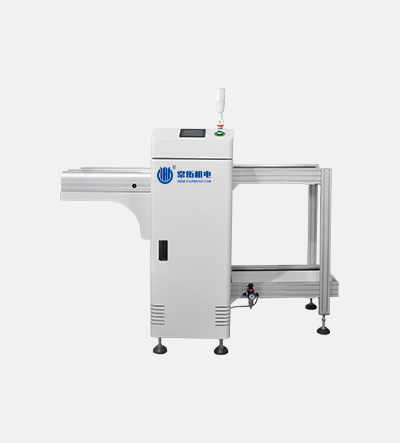

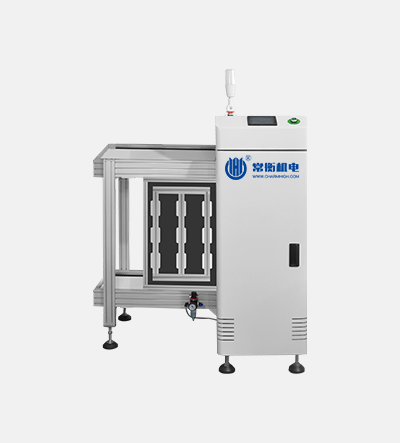

PCB load machine PCB Unload machine

Automatically transports PCB boards to the production line, and automatically and accurately delivers PCB boards tothe next device byreceiving the board request signal from the lower computer.

Used to collect processed PCB boards, usually at the end of the SMT production line.
Hcbb29296d8fd4a55a643e92ac7bf47bbq[1].png H7f73f740c5c0451685d1e7078fd1db870[1].png

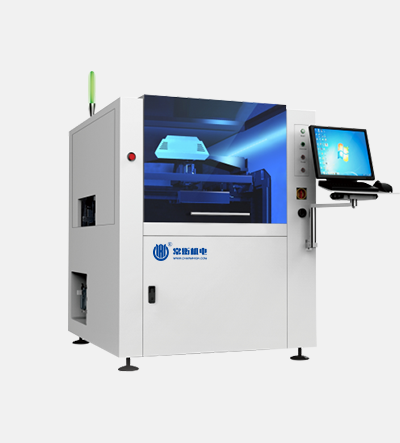

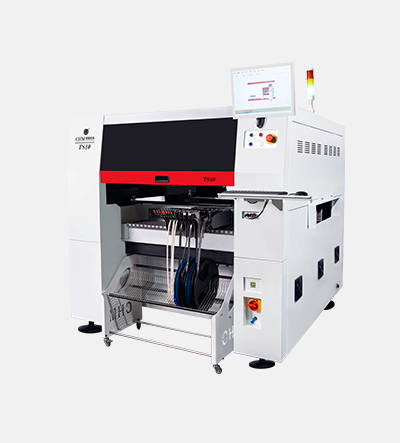

Solder paste printing machine Multi-function universal pick and place machine

The working principle is to fix the PCB on the printing table, then use a scraper to print the solder paste through the steel mesh on the designated pad,

 and then transfer it to the pick and place machine through the track.

By importing the PCB coordinate file, locating the PCB origin and the material picking position, the surface mount components are accurately mounted on the PCB board through the nozzle of the mounting head.
Hbbc4e7560f234a50afb17063ea75f3cbx[1].png H0187a67a20904387bbf7a1c01c92bfb9H[1].png

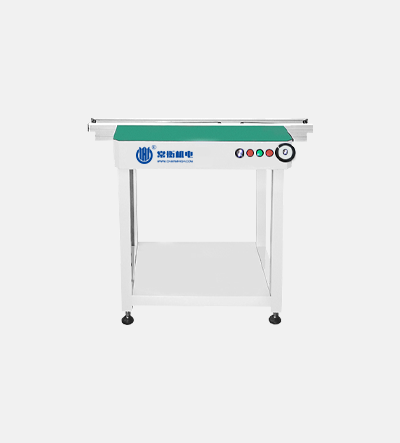

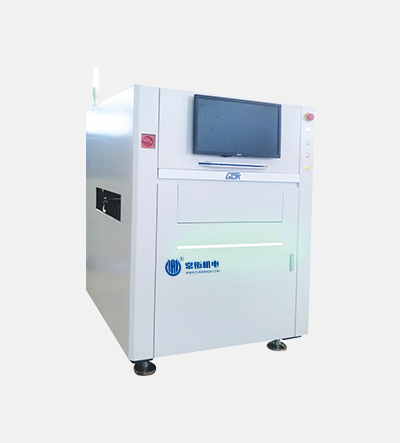

SMT Conveyor AOI

Used to connect devices in SMT production lines, with transmission and board stopping functions.

Automatic optical inspection uses high-speed and high-precision visual processing technology to automatically detect various mounting errors and welding defects on PCB boards.
H515d9ab7a6d641d9b84151c94f870bb8n[1].png Hfb849f4da9984938a5fe71b5ebec553ae[1].png

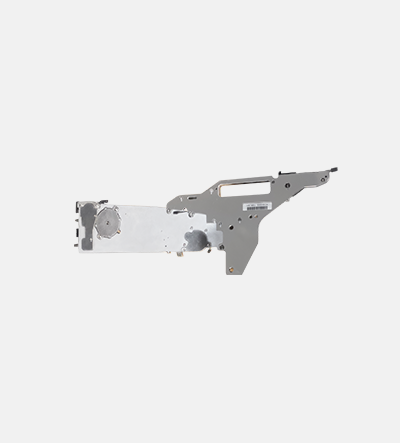

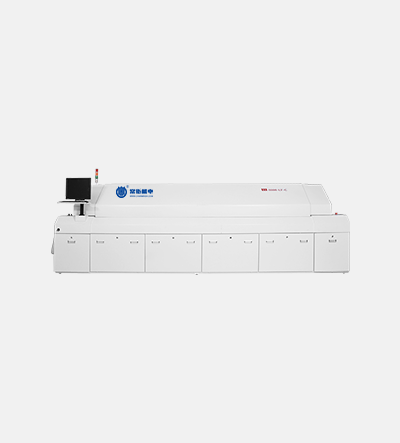

8- zone reflow oven Feeder
The solder paste is melted by heating to connect the components to the PCB boards, and then solidified by cooling. It is divided into preheating zone -constant temperature zone - reflow zone - cooling zone.

Tape feeder, tube feeder, tray feeder. Used for feeding packaged components on SMT machine

Pcb Making LED DOB Assembly Production Line CHM LS08 Visual Mounter 8 Head Speed SMT Pick and Place Machine supplier
Pcb Making LED DOB Assembly Production Line CHM LS08 Visual Mounter 8 Head Speed SMT Pick and Place Machine supplier

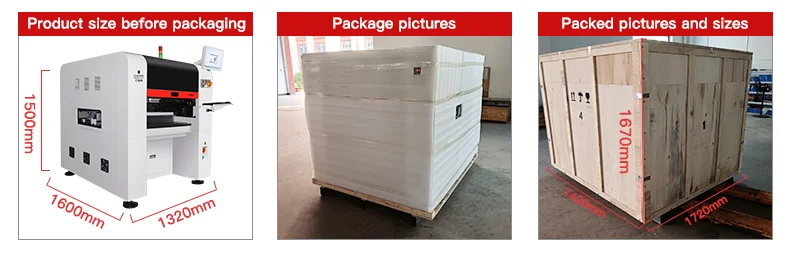

Packing & Delivery
Pcb Making LED DOB Assembly Production Line CHM LS08 Visual Mounter 8 Head Speed SMT Pick and Place Machine factory
Our Company
Pcb Making LED DOB Assembly Production Line CHM LS08 Visual Mounter 8 Head Speed SMT Pick and Place Machine manufacture
Pcb Making LED DOB Assembly Production Line CHM LS08 Visual Mounter 8 Head Speed SMT Pick and Place Machine manufacture
Pcb Making LED DOB Assembly Production Line CHM LS08 Visual Mounter 8 Head Speed SMT Pick and Place Machine factory
Pcb Making LED DOB Assembly Production Line CHM LS08 Visual Mounter 8 Head Speed SMT Pick and Place Machine details
FAQ
1. What can we do for you?
Various SMT equipment (such as pick and place machines, solder paste printers, reflow oven) and SMT one-stop services and solutions, professional after-sales service and technical support.
2. Are you a trader or manufacturer?
We are a professional pick and place machine manufacturer in China for 15 years.
3. How many days is the delivery date?
Normally all our products are in stock and will be shipped within 15 days after payment is received.
4. Why choose us!
China's leading SMT equipment manufacturer, providing professional and timely services.
5. What are the payment terms?
Down payment of 30%, paid before shipment.

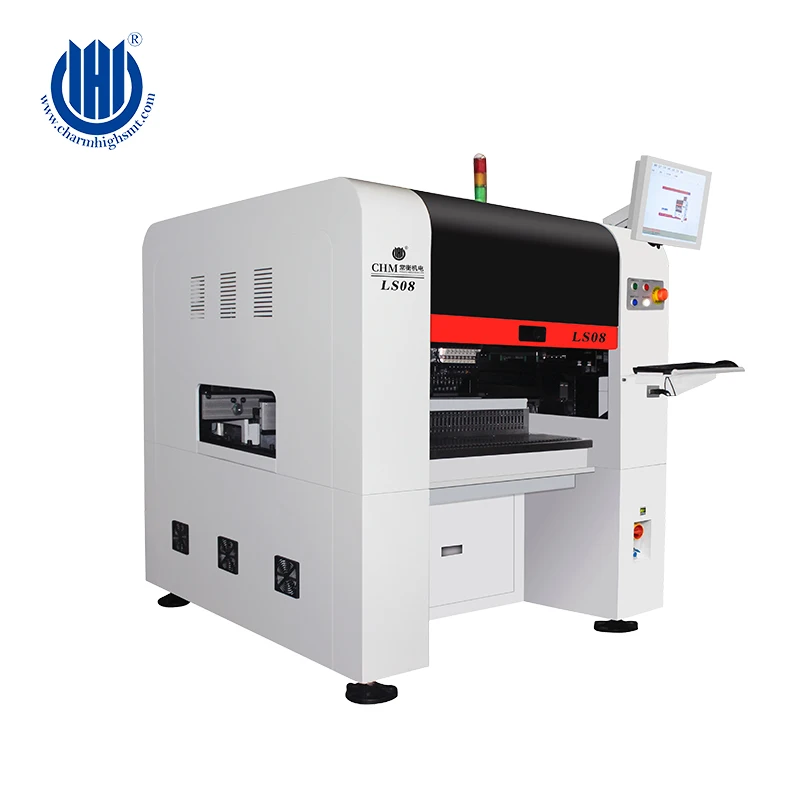

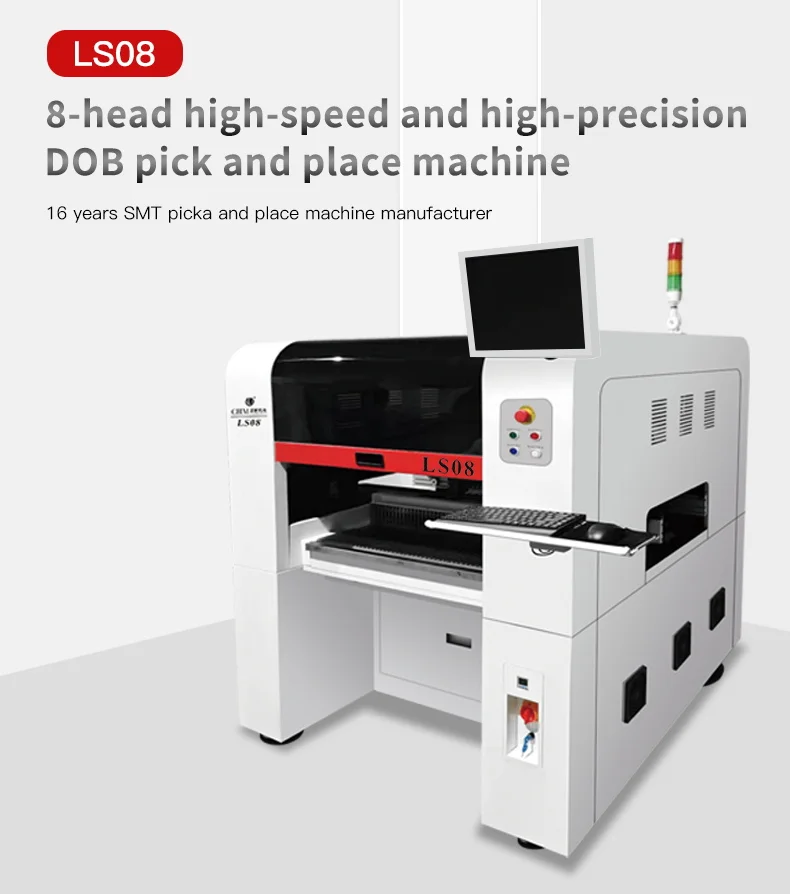

LS08 High speed and high precision 8 head mounting DOB Pick and Place Machine Specifications

LS08 Specifications
Dimensions
1280mm(L)×1580mm(W)×1500mm(H)
Weight
1400kg
Power Supply
AC220V (50Hz, single phase), 3.5kW
Air Supply
0.5MPa ~0.7MPa

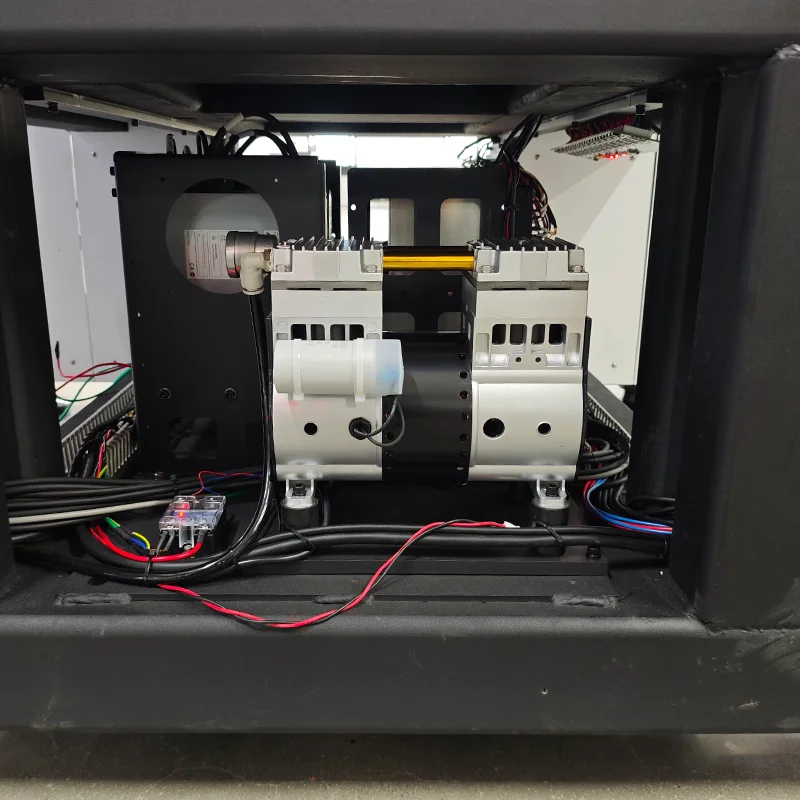

Vacuum Generation
Built-in vacuum pump
Mounting Head Quantity
8
Mounting Speed
35000cph (optimal)
Mounting Accuracy
（XY）±0.035mm
Component Height
≤20mm
Component Type
01005/0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc.(resistor/capacitor/diode/triode/LED/IC, etc.)
PCB Thickness
0.6mm~3.5mm
PCB Size
450mm(L)×350mm(W) (standard);
1200mm(L)×350mm(W) (optional)
PCB Conveying
3-section-rail automatic conveying, PCB support device
Nozzle Change
Automatic nozzle change (20-hole nozzle library)
Control System
Built-in industrial computer (Windows 7)
equipped with monitor, keyboard, and mouse
Drive System
X&Y axis driven by servo motors (Y axis by double motors); adopting flexible S-curve acceleration and deceleration
Transmission System
X&Y axis adopting ground screw and mute linear guide
(Y axis with double screws)
Feeding System
25 NXT 8mm standard feeder stacks
(also suitable for IC tray and stick feeder)
Vision System
Fly camera×8 (component size applicable: 16mm×16mm);
IC camera×1 (component size applicable: 36mm×36mm);
Mark camera×2
