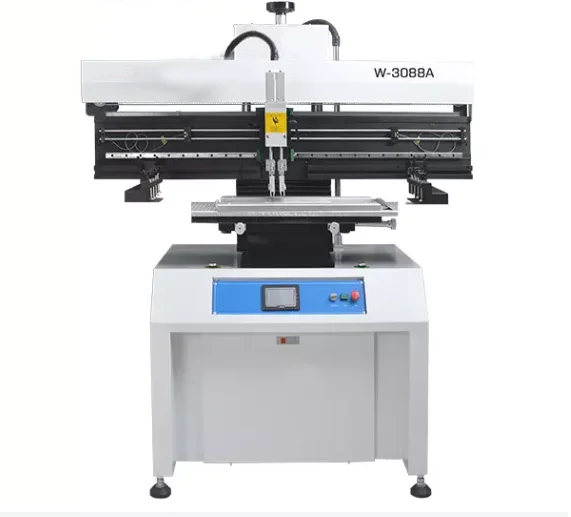

Standard Semi-automatic Solder Paste Printer W-3088A Solder Paste Printing Machine
SPECIFICATION:
♦ Using precision guide rail and the import motor to drive the blade seat conversion, printing, and high accuracy.
♦ Printing scraper can rotate 45 degrees fixed up, easy printing stencil and squeegee cleaning and replacement.
♦ Block can be adjusted before and after the blade, to choose the right printing position.
♦ Combined with a fixed groove printing platen and PIN, easy installation and adjustment, for single, double sided printing.
♦ School Edition way to move a steel mesh, combined with printed (PCB), X, Y, Z. Convenient fine adjustment.
♦ Can be set to one-way and two-way, a variety of printing methods.
♦ With the automatic counting function to facilitate the production of output statistics.
♦ Adjustable blade angle, steel blade, rubber scrapers are suitable.
♦ Touch screen with a screen saver function, the time can be adjusted to protect the touch-screen life.
♦ Printing speed display can be adjusted.
TECHNICAL PARAMETER :
Why choose us:
Hunan Charmhigh Electromechanical Equipment Co., Ltd. is located in the Changsha High-tech Development Zone, covering a total area of 3600 square meters ,with more than 100 employees here.
As a professional modern science and technology enterprise capable of both R&D, production and marketing, Charmhigh has been leading the way in SMT technology for more than ten years.
Different series of multi-head full-automatic SMT pick and place machines have been developed and manufactured by Charmhigh to meet various practical production needs.
In accordance with the business philosophy of “Customer First, Innovation Paramount”, Charmhigh has enjoyed high fame at home and abroad.
If you have interest in our products please kindly contact me I will give you immediate reply .
Thanks & best regards
Ellen Meng
Hunan Charmhigh Electromechanical Equipment Co., Ltd.
Add.:104-604,Building D,Jingrong Tongxin International Industrial Park(jindao Park),NO 179 ,Huizhi Middle Road,HI-TECH Development Zone,Changsha ,Hunan,P.R.China
Tel:0086-731-85504084 Fax:0086-731-85504064
Cell/wechat/whatsaapp/skype:0086-18974948067
TECHNICAL PARAMETER :
|
Model No. |
W-3088A |
|
Printing Table Size |
320 x 550mm |
|
Frame Size |
370×470mm-550×650mm |
|
Max PCB Size |
Maximum 300 × 500mm (customizable size) |
|
PCB Thickness |
0.2 ~ 2.0mm |
|
PCB Fixed Method |
PCB Outer Or Pin Positioning |
|
Platen fine-tuning |
Front/back ±10mm R/L ±10mm |
|
Printing Accuracy |
± 0.05mm |
|
Machine Repeatability |
± 0.02mm |
|
Minimum Spacing |
0.35mm |
|
Compressed Air |
4-6kgf / cm2 |
|
Power Supply |
Single Phase 220V 50/60HZ / 100W |
|
Dimensions |
L900 × W900 × H1650 ± 20mm |
|
Weight |
Approx. 300kg |
