High-speed CHM LS08 visual mounter with 8 heads, designed for LED DOB PCB assembly. Ensures precise SMT pick-and-place, improving efficiency and accuracy in LED production lines.

Get a Quote
  • Overview
  • Recommended Products

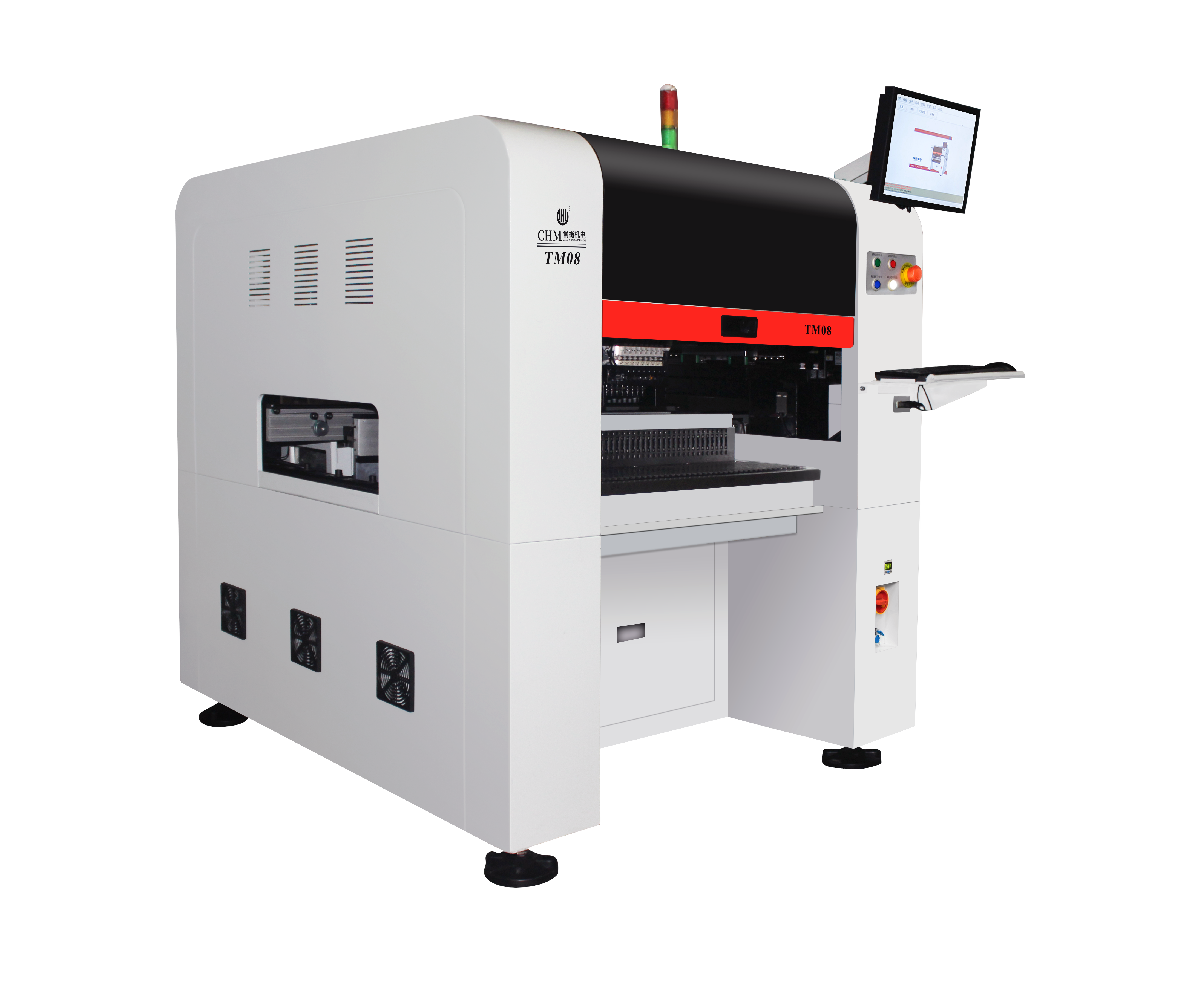

product full automatic charmhigh chip mounter pcb assembly line led making machine smt production line smd pick and place machine650-0

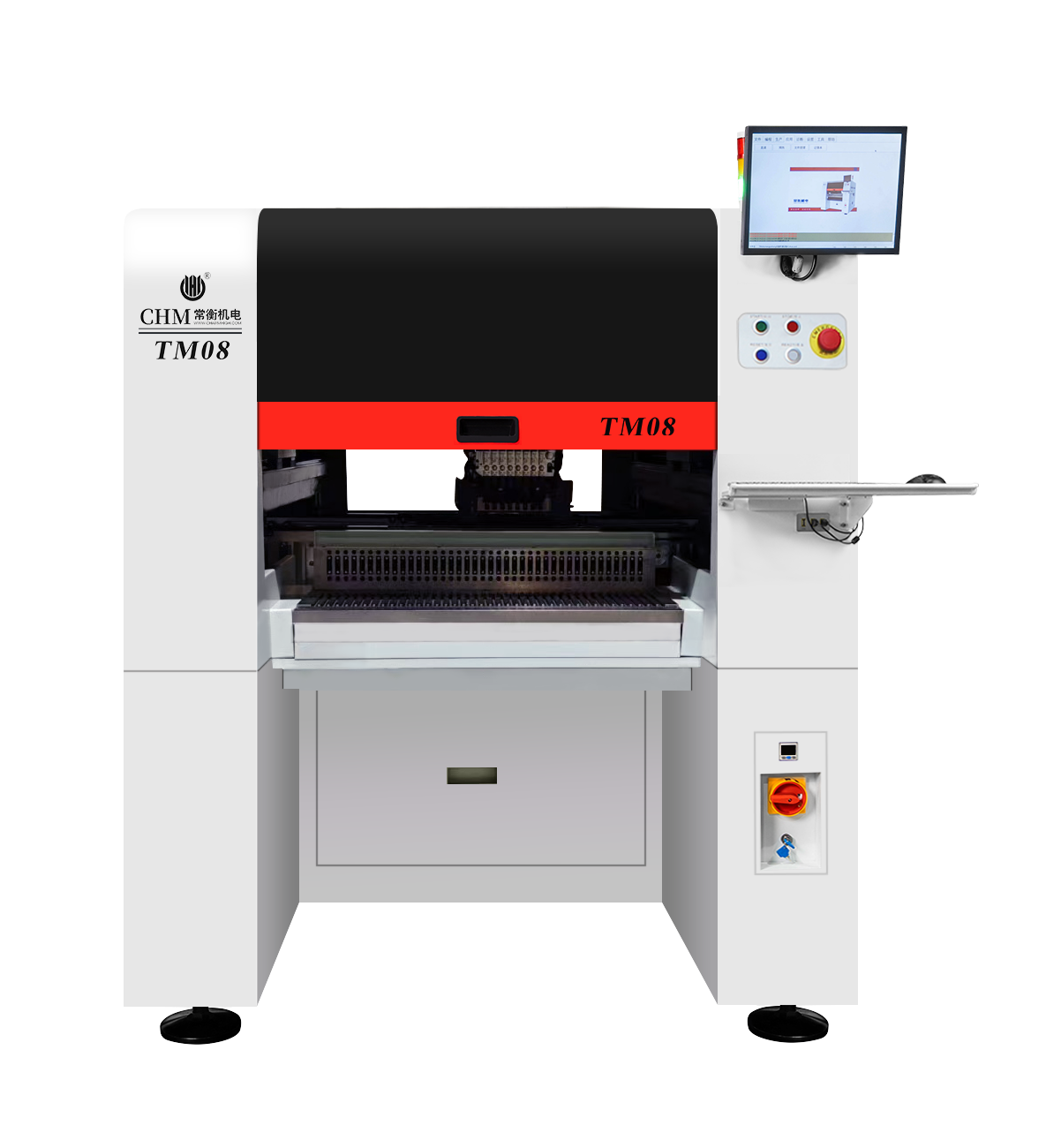

product full automatic charmhigh chip mounter pcb assembly line led making machine smt production line smd pick and place machine650-1

Overview

If you need a high-speed, high-precision, stable pick and place machine, please choose CHARMHIGH! If you need a pick and place machine with super cost-effectiveness, please choose CHARMHIGH! If you need aSMT production line that best suits your company , please choose CHARMHIGH!
Description of important advantages of the equipment
Supporting CPK is an important key to choosing a pick and place machine, making the SMT production process more stable.

ANC: nozzles can be automatically allocated according to components, making SMT production more intelligent and more efficient.
High-precision universal mounting head: one machine can meet the mounting needs of various components with high stability
Cast iron base structure, the pick and place machine runs smoothly at high speed.
Driven by dual servo motors, mounting accuracy is guaranteed.
For more advantages, please consult or leave a message online...
product full automatic charmhigh chip mounter pcb assembly line led making machine smt production line smd pick and place machine650-2
product full automatic charmhigh chip mounter pcb assembly line led making machine smt production line smd pick and place machine650-3

TS06 High speed, high precision and multi-function 6 head
Pick and Place Machine Specifications
TS06 Specifications
Dimensions
1600mm(L)×1688mm(W)×1560mm(H)
Weight
1930kg
Power Supply
AC380V (50Hz, three phase), 3.5kW
Air Supply
0.5MPa ~0.7MPa
Vacuum Generation
Built-in vacuum pump
Mounting Head Quantity
6
Mounting Speed
30000cph (optimal)
Mounting Accuracy
（XY）±0.035mm CPK≥1.0
Component Height
≤15mm
Mounting Range
0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc.
(resistor/capacitor/diode/triode/LED/IC, etc.)
PCB Thickness
0.6mm~3.5mm
PCB Size
600mm(L)×400mm(W) (standard);
PCB Conveying
3-section-rail automatic conveying, PCB support device
Nozzle Change
Automatic nozzle change (37-hole nozzle library)
Control System
Built-in industrial computer (Windows 7)
equipped with monitor, keyboard, and mouse
Drive System
X&Y axis driven by Panasonic A6 servo motors (Y axis by double motors); adopting flexible S-curve acceleration and deceleration
Transmission System
X&Y axis adopting THK ground ball screw and THK mute linear guide (Y axis with double screws)
Feeding System
100 NXT 8mm standard feeder stacks
(also suitable for IC tray and stick feeder)
Vision System
Fly camera×6 (component size applicable: 22mm×22mm);
IC camera×1 (component size applicable: 36mm×36mm);
It has the function of image stitching
Mark camera×2
Company Profile
product full automatic charmhigh chip mounter pcb assembly line led making machine smt production line smd pick and place machine650-4

Charmhigh was established in 2009 and has a history of 16 years. We mainly focuses on the research and development, manufacturing and sales of SMT P&P machines and provide customers with one-stop SMT solutions.We currently has our own industrial park, which is mainly divided into: R&D center, manufacturing center, sales center, etc. The site size is nearly 40,000 square meters. The products are exported to various countries and are deeply trusted by users.
Why Choose Us

1.CHARMHIGH is chosen by customers in more than 30 countries around the world. 2. We have rich experience in SMT factory settings and are good at customizing various SMT manufacturing solutions and services for customers from scratch. 3. We can provide the most professional technical services and support. 4. We have rich experience in dealing with SMT issues and solutions. 5. Choosing CHARMHIGH will definitely become your reliable Chinese partner.
product full automatic charmhigh chip mounter pcb assembly line led making machine smt production line smd pick and place machine650-5
product full automatic charmhigh chip mounter pcb assembly line led making machine smt production line smd pick and place machine650-6
product full automatic charmhigh chip mounter pcb assembly line led making machine smt production line smd pick and place machine650-7
Support CPK
CPK usually represents the process capability of the pick and place machine.Supporting CPK ensures that the equipment can work stably and accurately within the required range of accuracy.
product full automatic charmhigh chip mounter pcb assembly line led making machine smt production line smd pick and place machine650-8
ANC
37-hole nozzle library, automatically changes nozzles according to the different components, making your SMT production more intelligent and automatic, and improving production efficiency.
product full automatic charmhigh chip mounter pcb assembly line led making machine smt production line smd pick and place machine650-9
product full automatic charmhigh chip mounter pcb assembly line led making machine smt production line smd pick and place machine650-10
Y-axis servo dual motor drive
Ensure the accuracy and stability of the pick and place machine when working at high speed.Solve the problem of easy wear of angular swing torque generated by single motor drive.
Universal multifunctional mounting head
Meets the needs of mounting various components and don't need to replace the mounting head. Component mounting range: 01005-36mm*36mm.
product full automatic charmhigh chip mounter pcb assembly line led making machine smt production line smd pick and place machine650-11
product full automatic charmhigh chip mounter pcb assembly line led making machine smt production line smd pick and place machine650-12
Frame structure
The grinding platform and the Y-axis gantry are integrally cast. Refuse to use low-cost marble structure, which has poor impact resistance and cannot be repaired if it is damaged one day.
High-definition IC camera vision system
Based on advanced visual algorithms, it can clearly identify the number and characteristics of chip pins to ensure high-precision chip mounting. It also has segmentation and recognition functions to ensure the mounting of large components.
product full automatic charmhigh chip mounter pcb assembly line led making machine smt production line smd pick and place machine650-13
product full automatic charmhigh chip mounter pcb assembly line led making machine smt production line smd pick and place machine650-14
High-speed flying camera
High-speed synchronous recognition of components within 16MM*16MM, achieving high-speed mounting.Each nozzle has independent detection function, making SMT production more reliable.
100 feeder position(8mm)
50 material stacks in front and back, using NXT feeder, feeding accuracy ±0.03 mm CPK≥1, fast feeding speed, high accuracy, effectively reducing material throwing.
product full automatic charmhigh chip mounter pcb assembly line led making machine smt production line smd pick and place machine650-15
product full automatic charmhigh chip mounter pcb assembly line led making machine smt production line smd pick and place machine650-16
product full automatic charmhigh chip mounter pcb assembly line led making machine smt production line smd pick and place machine650-17

Feeding method: electric feeder is used for feeding, and the feeding accuracy reaches ±0.03mm CPK≥1. Feeder feeding table: supports offline feeding in advance, saving working time. Vibration feeder: support the feeding of tubular components. IC tray: support TRAY feeding and bulk components feeding.
product full automatic charmhigh chip mounter pcb assembly line led making machine smt production line smd pick and place machine650-18

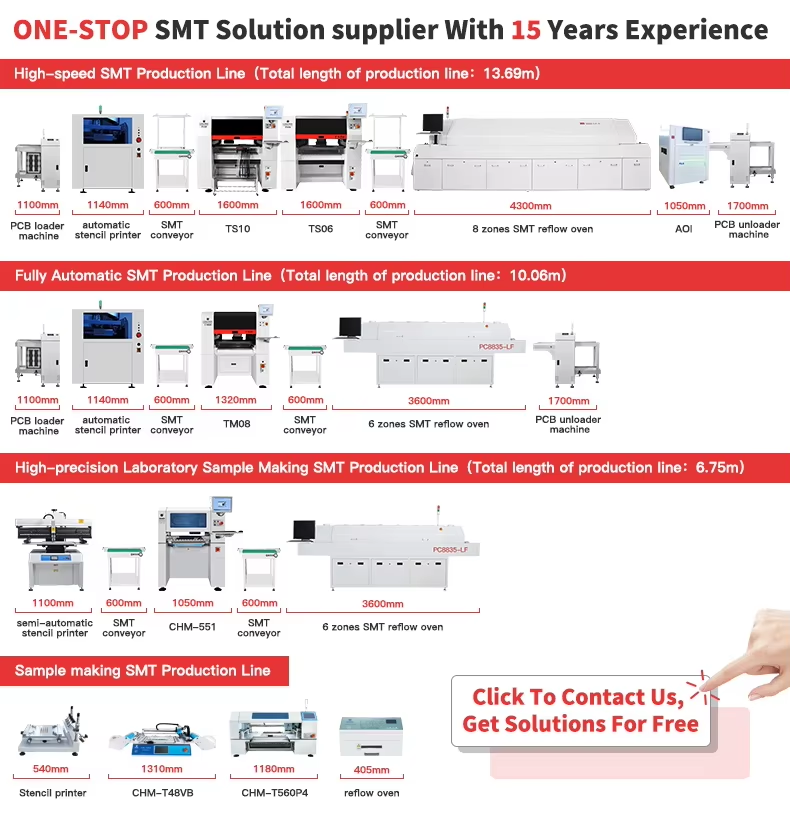

生产线0海报.pngPacking & Delivery
product full automatic charmhigh chip mounter pcb assembly line led making machine smt production line smd pick and place machine650-19
Our Company
product full automatic charmhigh chip mounter pcb assembly line led making machine smt production line smd pick and place machine650-20
product full automatic charmhigh chip mounter pcb assembly line led making machine smt production line smd pick and place machine650-21
Previous Case
product full automatic charmhigh chip mounter pcb assembly line led making machine smt production line smd pick and place machine650-22
Customer Case
product full automatic charmhigh chip mounter pcb assembly line led making machine smt production line smd pick and place machine650-23
FAQ
1. What can we do for you? Various SMT equipment (such as pick and place machines, solder paste printers, reflow oven) and SMT one-stop services and solutions, professional after-sales service and technical support. 2. Are you a trader or manufacturer?
We are a professional pick and place machine manufacturer in China for 16 years. 3. How many days is the delivery date? Normally all our products are in stock and will be shipped within 15 days after payment is received. 4. Why choose us! China's leading SMT equipment manufacturer, providing professional and timely services. 5. What are the payment terms? Down payment of 30%, paid before shipment.
