Semi-Automatic SMT Prototyping Line – Precision and Efficiency for Advanced Electronics Manufacturing

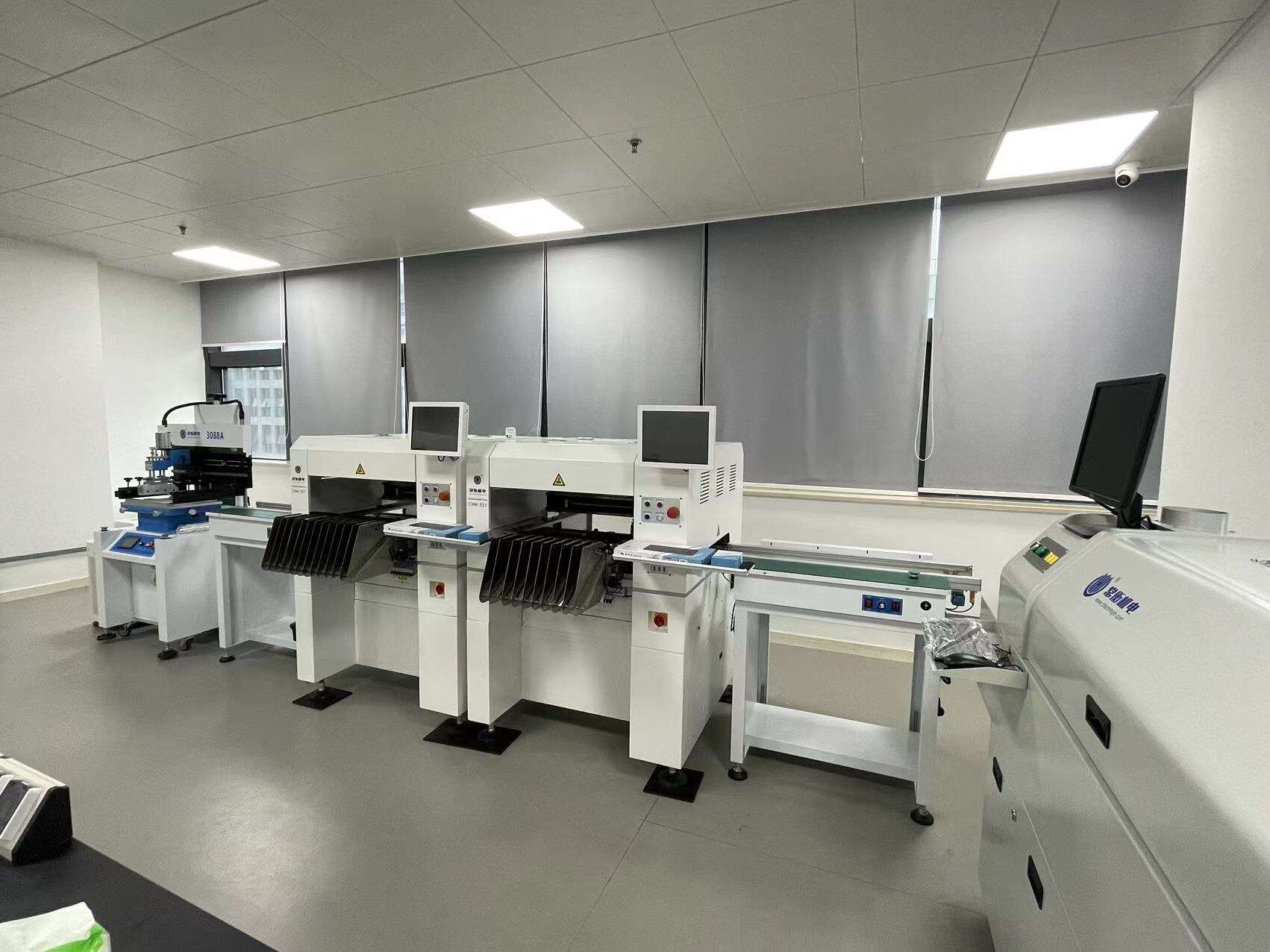

Our compact semi-automatic SMT prototyping line (total length: 10.5 meters) integrates a high-speed 4-head pick-and-place machine capable of 11,500 components per hour (CPH) while maintaining exceptional ±0.05mm placement accuracy, ensuring reliable mounting of ultra-fine 0201 (0.6mm x 0.3mm) components and smaller. Designed for R&D labs, pilot production, and low-volume manufacturing, this line is ideal for medical devices, wearables, IoT, and other precision electronics requiring quick design iterations and high repeatability.

Key Advantages:
✔ Space-Efficient Design – 40% smaller footprint than conventional SMT lines, ideal for lab environments with limited space.
✔ Rapid Prototyping – Supports fast setup and changeovers, reducing time-to-market for new designs.
✔ Stable High-Precision Assembly – Advanced vision alignment and servo control enable consistent ±0.05mm accuracy, critical for micro-BGA, QFN, and 0201/01005 passives.
✔ Scalable Low-Volume Production – 300+ PCBs/day capacity, perfect for small-batch medical, aerospace, and wearable applications.
✔ Flexible Material Handling – Compatible with 8mm tape feeders, trays, and stick magazines, streamlining multi-variant production.

By combining high precision, compact design, and rapid throughput, this SMT line bridges the gap between prototyping and full-scale production, enabling seamless transition from R&D to market-ready electronics.

Applications: Medical implants, smart wearables, sensor modules, RF devices, and other miniaturized electronics requiring high reliability and fine-pitch assembly.
