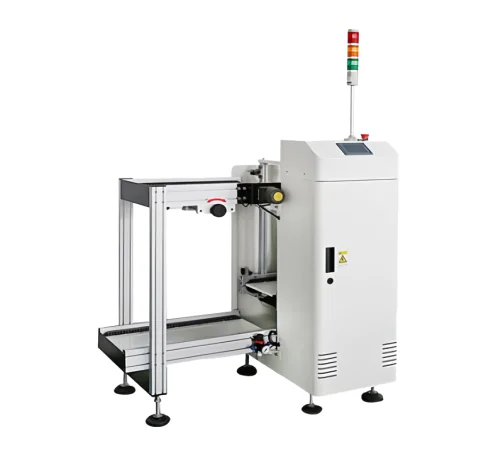

SMT PCB Automatic Magazine Rack Loader and Unloader New with Motor Engine and PLCEffective
Automatic SMT PCB magazine loader and unloader with motor and PLC control. Efficiently handles PCB magazines, improving production speed and workflow in SMT assembly lines.
- Overview
- Recommended Products

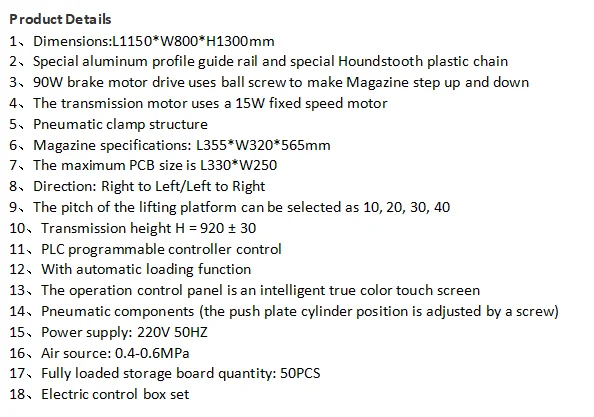

Product Details
1、Dimensions:L1150*W800*H1300mm
2、Special aluminum profile guide rail and special Houndstooth plastic chain
3、90W brake motor drive uses ball screw to make Magazine step up and down
4、The transmission motor uses a 15W fixed speed motor
5、Pneumatic clamp structure
6、Magazine specifications: L355*W320*565mm
7、The maximum PCB size is L330*W250
8、Direction: Right to Left/Left to Right
9、The pitch of the lifting platform can be selected as 10, 20, 30, 40
10、Transmission height H = 920 ± 30
11、PLC programmable controller control
12、With automatic loading function
13、The operation control panel is an intelligent true color touch screen
14、Pneumatic components (the push plate cylinder position is adjusted by a screw)
15、Power supply: 220V 50HZ
16、Air source: 0.4-0.6MPa
17、Fully loaded storage board quantity: 50PCS
18、Electric control box set
1、Dimensions:L1150*W800*H1300mm
2、Special aluminum profile guide rail and special Houndstooth plastic chain
3、90W brake motor drive uses ball screw to make Magazine step up and down
4、The transmission motor uses a 15W fixed speed motor
5、Pneumatic clamp structure
6、Magazine specifications: L355*W320*565mm
7、The maximum PCB size is L330*W250
8、Direction: Right to Left/Left to Right
9、The pitch of the lifting platform can be selected as 10, 20, 30, 40
10、Transmission height H = 920 ± 30
11、PLC programmable controller control
12、With automatic loading function
13、The operation control panel is an intelligent true color touch screen
14、Pneumatic components (the push plate cylinder position is adjusted by a screw)
15、Power supply: 220V 50HZ
16、Air source: 0.4-0.6MPa
17、Fully loaded storage board quantity: 50PCS
18、Electric control box set
