Compact Fully Automated SMT Line – Precision Manufacturing for Small-to-Medium Batch Production

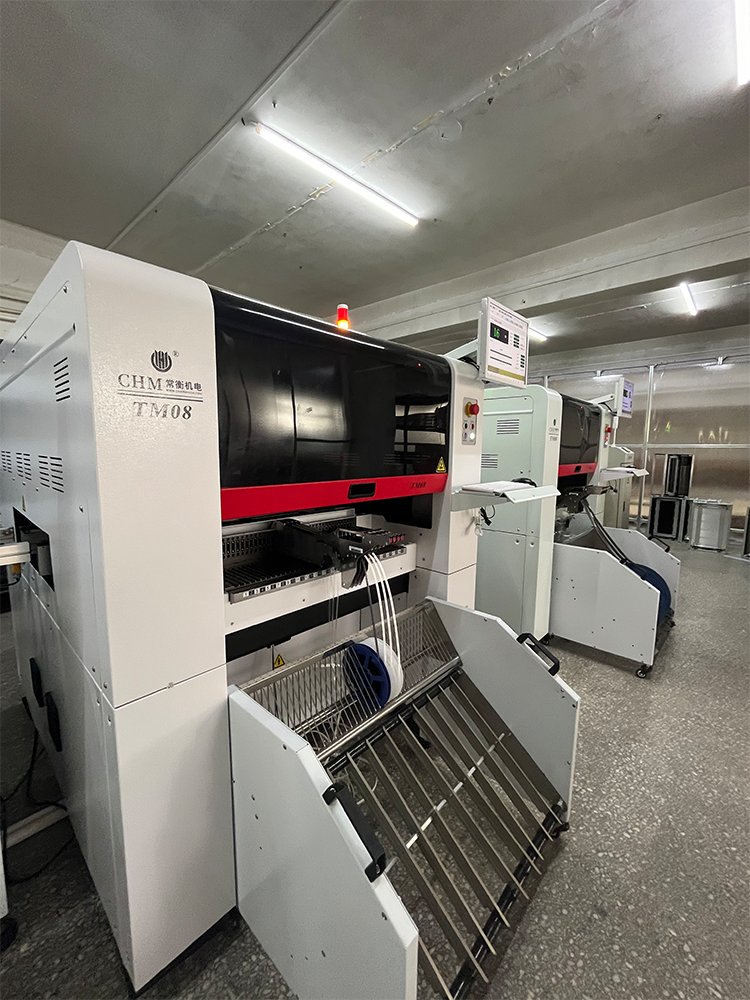

This space-saving, fully automated SMT production line (total length: 9.7 meters) seamlessly integrates a PCB loader, high-precision solder paste printer, 6-head high-speed placement machine (27,800 CPH), reflow oven, and unloader to deliver ±0.04mm ultra-fine placement accuracy. Priced from $30,000 USD, this turnkey solution is engineered for cost-effective, high-quality production of small-to-medium batches, making it ideal for consumer electronics, automotive control modules, and smart home devices.

Key Advantages:
✔ Optimized for Compact Spaces – Minimal floor space requirement with full automation, perfect for small factories and R&D-to-production transition.
✔ High-Speed Precision Placement – 6-head turret technology achieves 27,800 CPH with ±0.04mm accuracy, ensuring reliable assembly of 0201/01005 components, QFNs, and 0.4mm-pitch BGAs.
✔ Stable Process Control – Closed-loop temperature profiling in reflow oven and precision paste deposition for consistent first-pass yield (CPK≥1.33).
✔ Plug-and-Play Automation – Integrated conveyor system reduces manual handling, improving efficiency and reducing defects.
✔ Scalable for Mid-Volume Runs – Supports 300–500 PCBs/day (depending on complexity), ideal for IoT devices, automotive sensors, and smart appliances.

Performance Highlights:
◉ Component Range: 01005 to 25mm x 25mm ICs
◉ Supported PCB Sizes: 50mm x 50mm up to 400mm x 350mm
◉ Uptime: >92% with easy-access maintenance design

Ideal Applications:
• Consumer Electronics: TWS earphones, smartwatches, home automation PCBs
• Automotive: Dashboard controls, LED lighting, sensor modules
• Industrial & IoT: Wireless modules, embedded systems, power management boards
