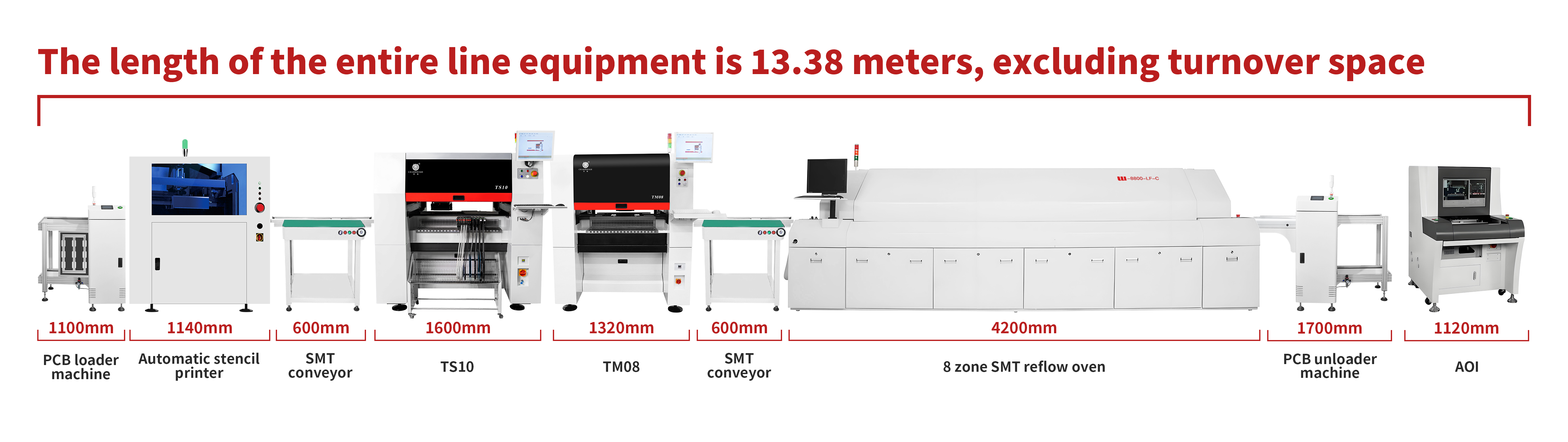

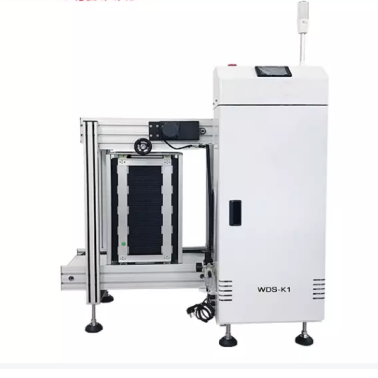

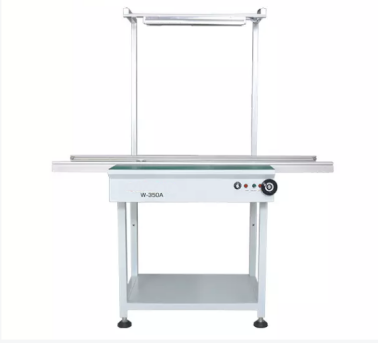

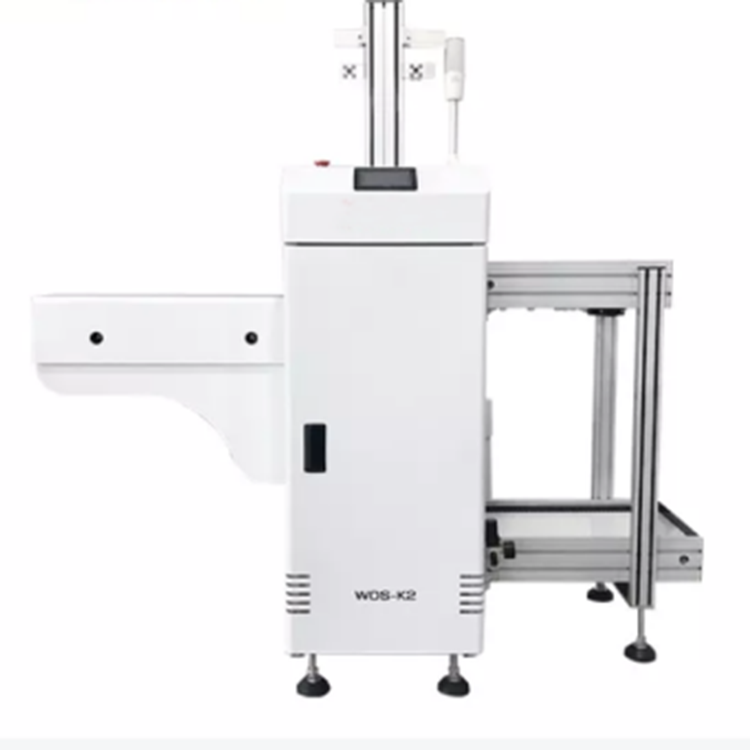

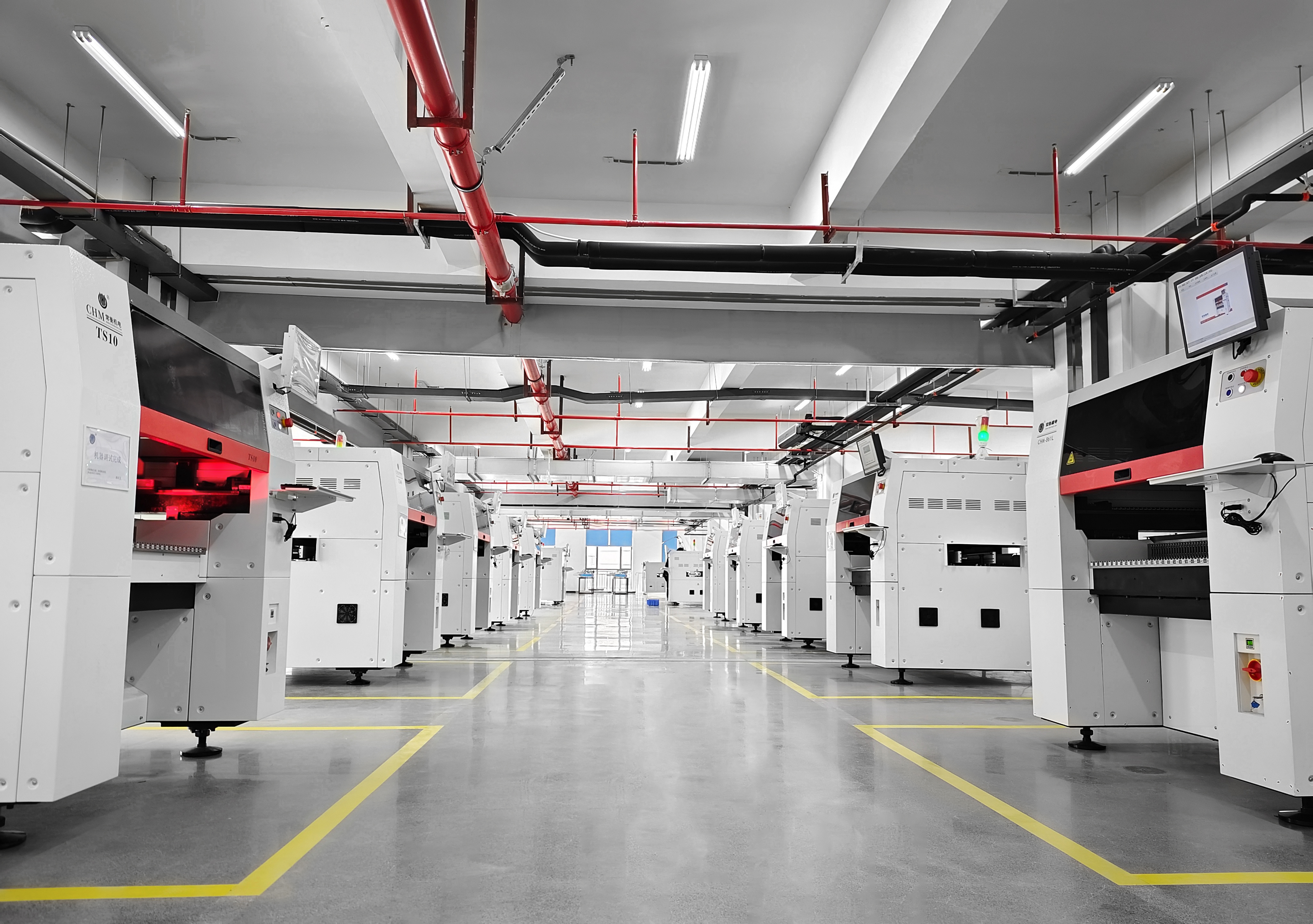

Fully-auto SMT Production line, highly flexible SMT assembly line

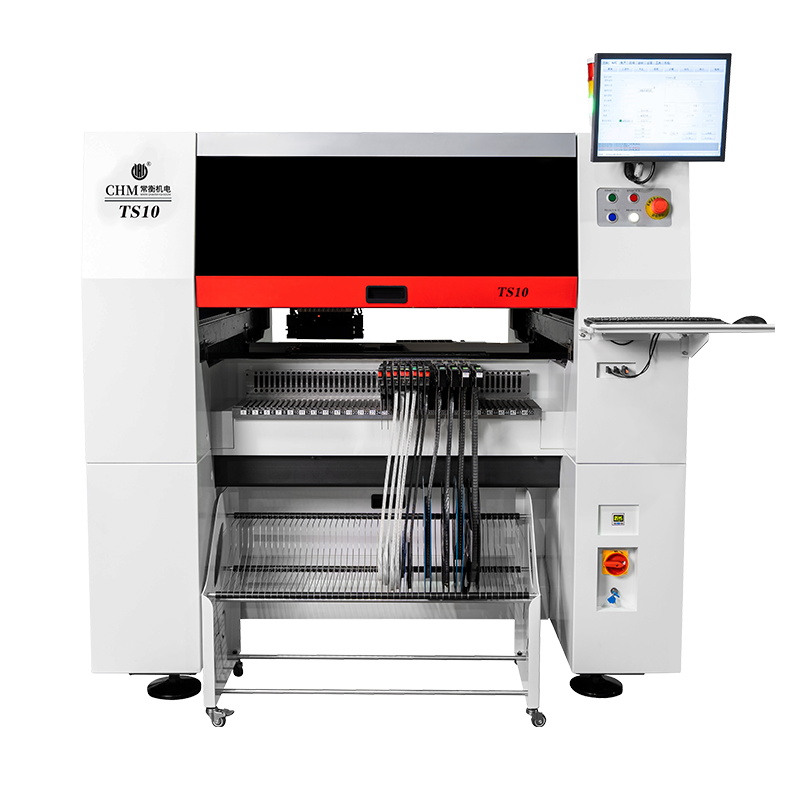

Mounting Head Quantity

10

Weight

1930kg

Air Supply

0.5Mpa-0.7Mpa

Vacuum Generation

Built-in vacuum pump

Component Height

≤12mm

PCB Size

1200mm(L)×400mm(W) (optional)

Dimensions

1600mm(L)×1688mm(W)×1560mm(H)

Mounting Speed

42000cph (optimal)

Mounting Accuracy

（XY）±40μm CPK≥1.0

ControlAccuracy

4μm

PCBThickness

0.6mm~3.5mm

PCBConveying

3-section-rail automatic conveying, PCB support device

Nozzle Change

Automatic nozzle change (37-hole nozzle library)

Control System

Built-in industrial computer (Windows 7)

equipped with monitor, keyboard, and mouse

Power Supply

AC380V (50Hz, single phase), 4.5kW

PCB Conveying

3-section-rail automatic conveying, PCB support device

Nozzle Change

Automatic nozzle change (37-hole nozzle library)

Control System

Built-in industrial computer (Windows 7)

equipped with monitor, keyboard, and mouse

Drive System

X&Y axis driven by Panasonic A6 servo motors (Y axis by

double motors); adopting flexible S-curve acceleration and deceleration

Transmission System

X&Y axis adopting ground ball screw and mute linear guide

(Y axis with double screws)

Feeding System

100 NXT 8mm standard feeder stacks

(also suitable for IC tray and stick feeder)

Vision System

Fly camera×10 (component size applicable: 16mm×16mm);

IC camera×1 (component size applicable: 36mm×36mm)

Mark camera×2

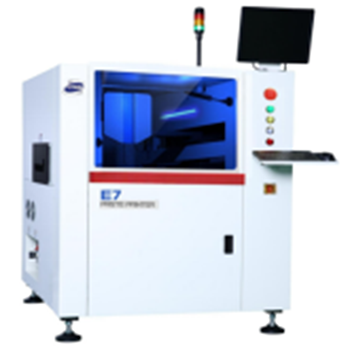

Maximum board size

450mm*350mm

Minimum board size

50mm*50mm

PCB thickness

0.4mm-6mm

Warpage

1%Diagonal

Transfer speed

1500mm/s

Printing speed

0~200 mm/s

Repeat position accuracy

±12.5μm @6 σ , Cpk ≥ 2.0

Power requirements

AC220V+10%,50/60HZ,15A

Dimension(L*W*H)mm

4600×1300×1470

Weight

Approx2000Kg

.Number of Heating Zones

Up8+ Bottom8

Length of Heating Zones

3150mm

Max.Width Of PCB

Mesh belt width 500mm, guide rail adjustable 380mm

Conveyor Height

880±20mm

Conveyor Speed Range

0-2000mm/min

Power Supply

5 Wire, 3 Phase, 380V

Start Power

48KW

Power Consumption

Approx8-10KW

Temperature Control Precision

±2℃
